Components

Browse our selection of components

0201/10 PF-480 PF Capacitor Chip

Is a miniaturized cap with a very tight pitch between the conductors of opposite polarity. Flux often bridges the conductive paths, but this component is good for both clean and no-clean process residues.

Learn More

0402/10 PF-480 PF Capacitor Chip

Are common on all circuit designs. These caps have low standoff gaps under 50µms. The tighter pitch in combination with the low standoff can underfill and block outgassing channels. The caps are excellent for characterizing both clean and no-clean process residues under similar component styles.

Learn More

0603/10 PF-480 PF Capacitor Chip

Learn More

0805/10 PF-480 PF Capacitor Chip

Learn More

1206/10 PF-480 PF Capacitor Chip

Is representative of capacitor caps that exhibit a low standoff gap. As the pitch tightens in combination with the low standoff, flux residues can underfill and block outgassing channels. This component is designed to characterize both clean and no-clean process residues under similar component package styles.

Learn More

MGX 2 Pin Header Shunt (Jumper)

The pin header shunt allows the user to turn on or off one or more components across the net of components in a specific quadrant. Should you have a failure, the shunt will allow you to determine the component from which that failure occurred. The header shunt is not designed across every board. It is commonly used on custom-designed highly dense test boards.

Learn More

MGX BGA 1020 Chip

MGX BGA 1020 is a 1020 I/O array designed to be used for both BGA and LGA component designs. As the I/O increases to 1020, the package presents a greater challenge for both clean and no-clean designs.

Learn More

MGX BGA 1932 Chip

MGX BGA 1932 is a 1932 I/O array designed to be used for both BGA and LGA component designs. As the I/O increases to 1932, the challenge for both clean and no-clean widens making for a worst-case condition.

Learn More

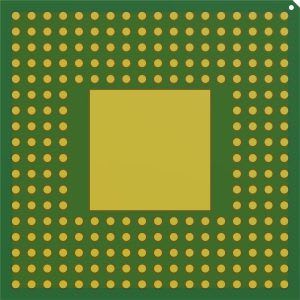

MGX BGA 244 Chip

With a center lug, MGX BGA 244 has a high standoff gap and easier to clean. This component tends to be representative of the BGA family of components. The center lug adds some degree of complexity by obstructing flow channels.

Learn More

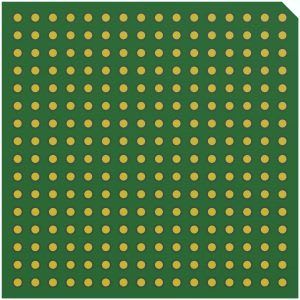

MGX BGA 256 Chip

MGX BGA 256 is a 256 I/O array designed to be used for both BGA and LGA component designs. The 256 I/O is optimal for defining cleanliness levels under similar package styles.

Learn More

MGX BGA 572 Chip

MGX BGA 572 is a 572 I/O array designed to be used for both BGA and LGA component designs. By increasing the I/O to 572, the residue set will be a more rigorous test for both clean and no-clean designs.

Learn More

MGX Custom 64 SMT Connector

MGX Custom 64 SMT is representative of surface mount connectors. The large pad dimensions of 0.36 mm by 2.2 mm can trap process residues pin to pin. This component is designed to define cleanliness levels on similar connector designs.

Learn More

MGX QFN 48-11 Chip

MGX QFN 48-11 Chip is one of the more challenging components to clean with a standoff gap lower than 50μms, flux residues bridge the lands and thermal lug. The residues tend to be active due to poor outgassing channels.

Learn More

MGX QFN 48-1 Chip

MGX QFN 48-1 Chip is one of the more challenging components to clean with a standoff gap lower than 50µms, flux residues bridge the lands and thermal lug. The residues tend to be active due to poor outgassing channels.

Learn More

MGX QFN 48 Chip

MGX QFN 48 has a smaller thermal lug of 4 mm squared designed to define cleanliness levels under similar package styles.

Learn More

MGX QFN 88-1 Chip

MGX QFN 88-1 Chip is a larger QFN with 88 signal pins and 10.5 mm squared thermal lug designed to define cleanliness levels under similar package styles.

Learn More

MGX QFN DR 124-1 Chip

MGX QFN DR 124-1 Chip is a dual row QFN with 124 signal pins and large 7 mm squared ground lug designed to define cleanliness levels under similar package styles.

Learn More

MGX QFP 160-1 Chip

MGX QFP 160-1 is representative of the leaded QFN 80 components with smaller pad size of 0.3 mm by 1.0 mm and SIR comb under the component termination. This component is designed to detect cleaning and rinsing issues.

Learn More

MGX QFP 160 Chip

MGX QFP 160 is a challenging component due to the 0.65 mm pitch and large pad size of 0.45 mm by 2 mm and SIR comb under the component termination. Unlike the leaded component, the lands are screen printed around the peripheral of the part. These components are excellent for detecting cleaning and rinsing issues.

Learn More

MGX QFP 80-1 Chip

MGX QFP 80-1 is representative of the leaded QFN 80 components with smaller pad size of 0.25 mm by 1.0 mm and SIR comb under the component termination. This component is designed to detect cleaning and rinsing issues.

Learn More

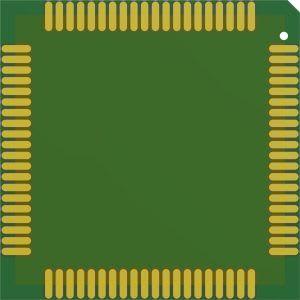

MGX QFP 80 Chip

MGX QFP 80 is a challenging component due to the 0.65 mm pitch and large pad size of 0.45 mm by 1.8 mm and SIR comb under the component termination. Unlike the leaded component, the lands are screen printed around the peripheral of the part. These components are excellent for detecting cleaning and rinsing issues.

Learn More

MGX SMT TH-40 Pin Custom Connector

MGX SMT TH-40 Pin is representative of a surface mount and thru-hole connector. This is a challenging component due to the large SMT pad size 0.5 mm by 2 mm. In addition, the wave or selective flux can wet through the barrel and intermix with the SMT flux.

Learn More

ResidVUE QFN 48-11

The ResidVUE QFN 48-11 component is a 48-lead, glass-substrate QFN package. It is designed specifically for visual flux residue inspection, cleaning process characterization, and surface insulation resistance (SIR) testing. Enabling controlled evaluation of electrochemical cleanliness, flux behavior, and process reliability in accordance with the requirements of J-STD-001 Section 8
