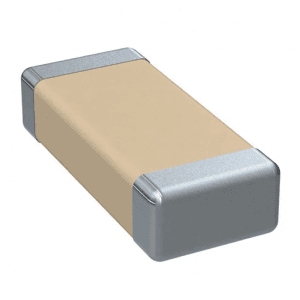

1206/10 PF-480 PF Capacitor Chip
1206/10 PF-480 PF Capacitor Chip

1206/10 PF-480 PF Capacitor Chip

Description

Is representative of capacitor caps that exhibit a low standoff gap. As the pitch tightens in combination with the low standoff, flux residues can underfill and block outgassing channels. This component is designed to characterize both clean and no-clean process residues under similar component package styles.

Details

0.126”L x 0.063”W (3.20 mm x 1.60 mm)

Compatible Test Cards
MGX Connector 10

MGX Connector 10

MGX Connector 10 SIR test board allows an assembler to evaluate multiple soldering steps on surface mount caps on the top and bottom side with a high-density SMT/TH connector. The MGX Connector 10 allows an assembler to test no-clean processing across multiple soldering steps including Surface Mount, Thru-Hole and Rework.
