MGX Connector 10
MGX Connector 10
Description

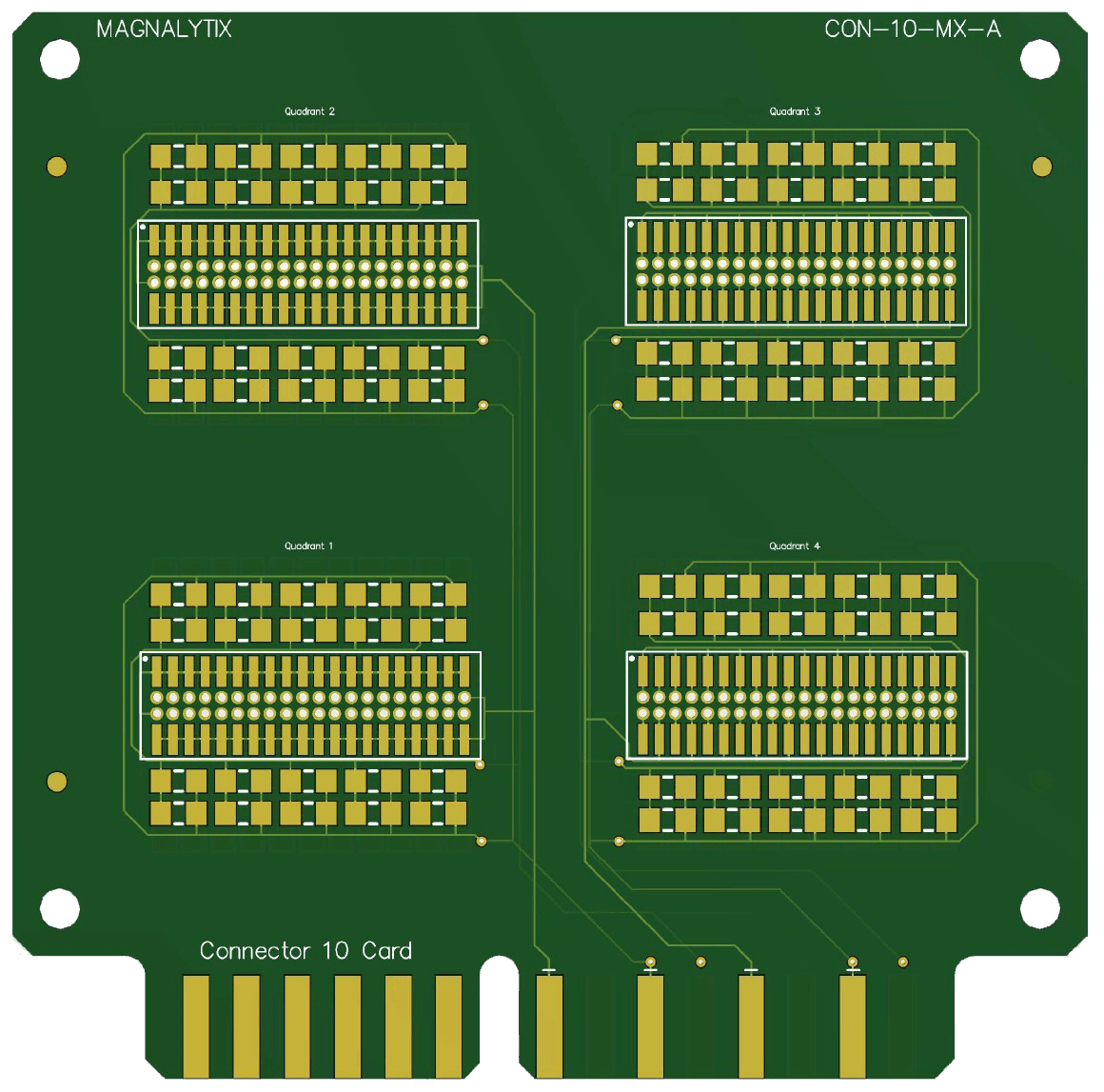

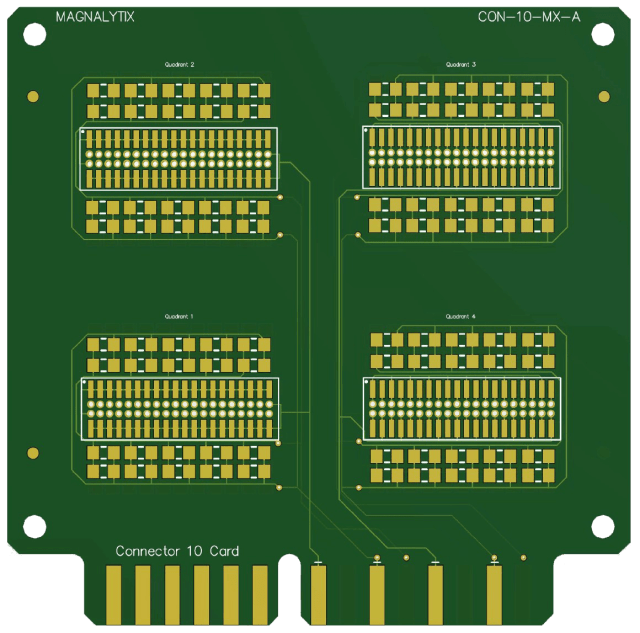

MGX Connector 10 SIR test board allows an assembler to evaluate multiple soldering steps on surface mount caps on the top and bottom side with a high-density SMT/TH connector. The MGX Connector 10 allows an assembler to test no-clean processing across multiple soldering steps including Surface Mount, Thru-Hole and Rework.
Uses
Solder Paste Characterization
No-Clean Soldering
Selective Soldering
Double-Sided Mixed Technology
Cleaning (Top Side, Bottom Side, Topical)
Components
MGX SMT TH-40 Pin Custom Connector
MGX SMT TH-40 Pin is representative of a surface mount and thru-hole connector. This is a challenging component due to the large SMT pad size 0.5 mm by 2 mm. In addition, the wave or selective flux can wet through the barrel and intermix with the SMT flux.
1206/10 PF-480 PF Capacitor Chip
Is representative of capacitor caps that exhibit a low standoff gap. As the pitch tightens in combination with the low standoff, flux residues can underfill and block outgassing channels. This component is designed to characterize both clean and no-clean process residues under similar component package styles.
0508/10 PF-480 PF Capacitor Array Chip
Is a miniaturized cap with a very tight pitch between the conductors of opposite polarity. This design tests for fluid that can be trapped in the body of the component located under an RF Shield.
