  7. MGX QFN 48 Chip

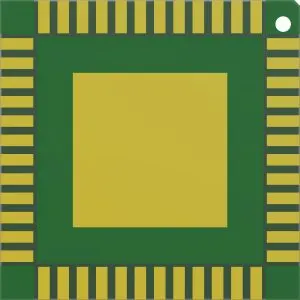

MGX QFN 48 Chip (Back View)

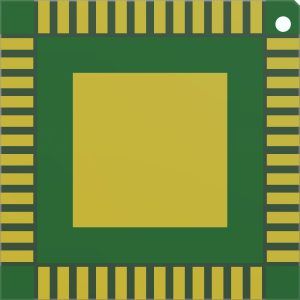

MGX QFN 48 Chip (Back View)
MGX QFN 48 Chip (Front View)

MGX QFN 48 Chip

Description

MGX QFN 48 has a smaller thermal lug of 4 mm squared designed to define cleanliness levels under similar package styles.


Details

48-Leads, Body 7.8×7.8 mm, Pitch 0.5 mm



Compatible Test Cards
MGX QMP Type B (Top)

MGX QMP Type B

The electronics industry is rapidly embracing the IPC J-STD-001 cleanliness standard. SIR testing is the preferred method for qualified manufacturing plan certification. This standard has just begun to impact electronics manufacturers as design and production teams work through compliance with their design authority.

MGX QMP Type C (Top)

MGX QMP Type C

The electronics industry is rapidly embracing the IPC J-STD-001 cleanliness standard. SIR testing is the preferred method for qualified manufacturing plan certification. This standard has just begun to impact electronics manufacturers as design and production teams work through compliance with their design authority.

MGX B-52 Legacy 1

MGX B-52 Legacy 1

The MGX B-52 Legacy 1 SIR test board evaluates the activity of flux residue at both the I/O and under component terminations. One of the unique features of these test boards is the QFP 160 and QFP 80 SIR comb patterns placed underneath these components. These combs allow the assembler to detect bath loading and rinse issues within the cleaning process.
