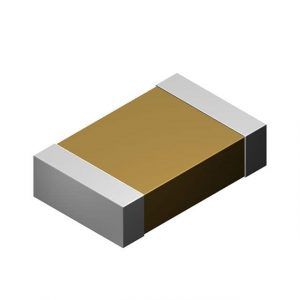

0603/10 PF-480 PF Capacitor Chip
0603/10 PF-480 PF Capacitor Chip

0603/10 PF-480 PF Capacitor Chip

Description

Are common on all circuit designs. These caps have low standoff gaps under 50µms. The tighter pitch in combination with the low standoff can underfill and block outgassing channels. The caps are excellent for characterizing both clean and no-clean process residues under similar component styles.

Details

0.063”L x 0.031”W (1.60 mm x 0.80 mm)

Compatible Test Cards
MGX B-52 Legacy 2

MGX B-52 Legacy 2

The MGX B-52 Legacy 2 SIR test board evaluates the activity of flux residue at both the I/O and under component terminations. MGX B-52 Legacy 2 is used to characterize solder paste, process development, and process control. The B-52 Legacy 2 card is one of our most popular test cards.
