Description

The MGX B-52 Legacy 2 SIR test board evaluates the activity of flux residue at both the I/O and under component terminations. MGX B-52 Legacy 2 is used to characterize solder paste, process development, and process control. The B-52 Legacy 2 card is one of our most popular test cards.

In Stock • Ready for Shipment

Uses

Surface Mount Technology

Solder Paste Characterization

Activity of Flux Residue

No-Clean Soldering

Cleaning under Bottom Terminated Components

Risk of Partially Cleaned Flux Residue

Rinsing Effectiveness (Wash Fluid Entrapment)

Wash Fluid Bath Life

Rework

Conformal Coating Characterization

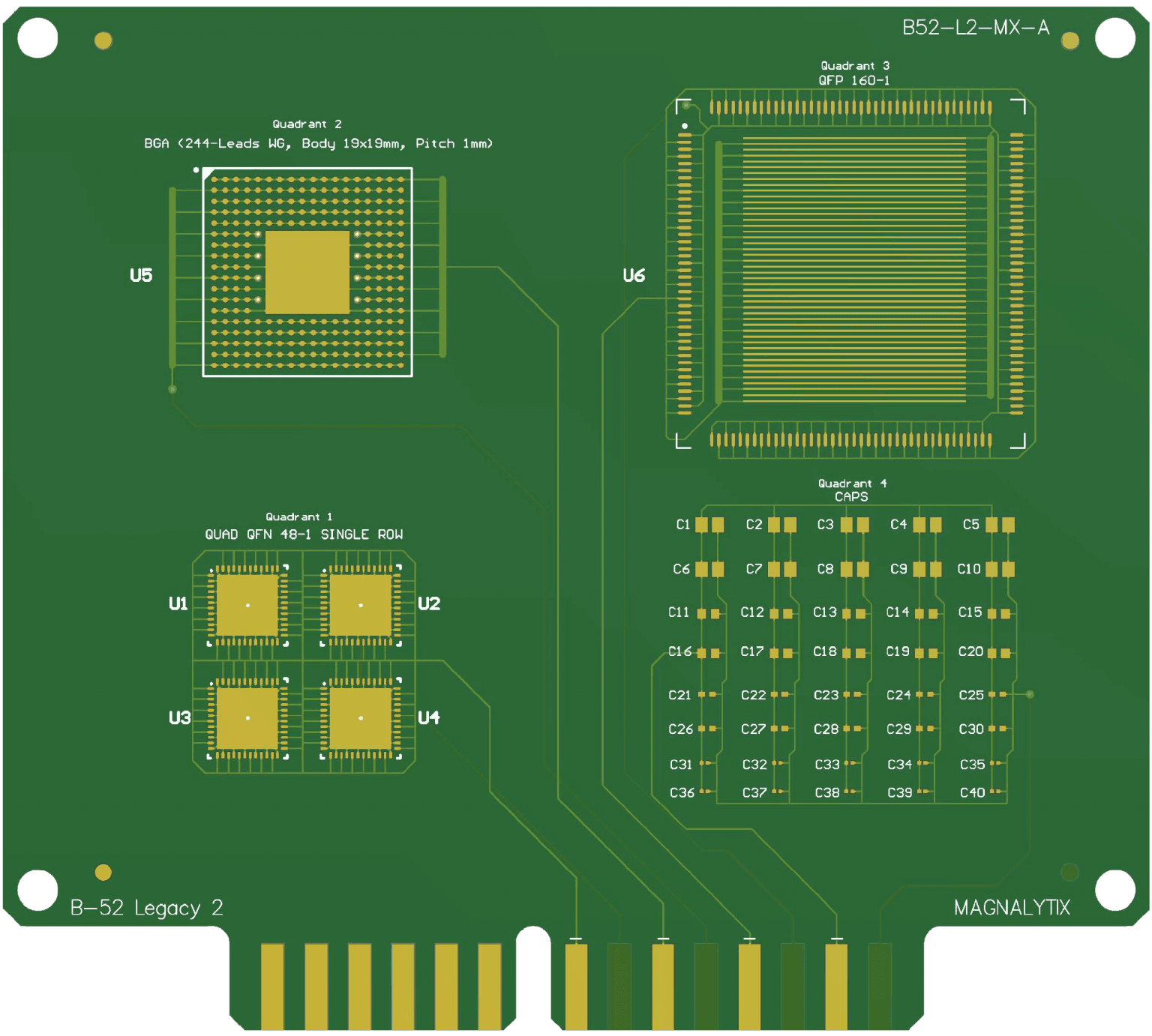

Components

MGX QFN 48-1 Chip (Back View)

MGX QFN 48-1 Chip

MGX QFN 48-1 Chip is one of the more challenging components to clean with a standoff gap lower than 50µms, flux residues bridge the lands and thermal lug. The residues tend to be active due to poor outgassing channels.

MGX BGA 244 Chip (Back View)

MGX BGA 244 Chip

With a center lug, MGX BGA 244 has a high standoff gap and easier to clean. This component tends to be representative of the BGA family of components. The center lug adds some degree of complexity by obstructing flow channels.

MGX QFP 160-1 Chip (Back View)

MGX QFP 160-1 Chip

MGX QFP 160-1 is representative of the leaded QFN 80 components with smaller pad size of 0.3 mm by 1.0 mm and SIR comb under the component termination. This component is designed to detect cleaning and rinsing issues.

0402/10 PF-480 PF Capacitor Chip

0402/10 PF-480 PF Capacitor Chip

Are common on all circuit designs. These caps have low standoff gaps under 50µms. The tighter pitch in combination with the low standoff can underfill and block outgassing channels. The caps are excellent for characterizing both clean and no-clean process residues under similar component styles.

0603/10 PF-480 PF Capacitor Chip

0603/10 PF-480 PF Capacitor Chip

Are common on all circuit designs. These caps have low standoff gaps under 50µms. The tighter pitch in combination with the low standoff can underfill and block outgassing channels. The caps are excellent for characterizing both clean and no-clean process residues under similar component styles.

0805/10 PF-480 PF Capacitor Chip

0805/10 PF-480 PF Capacitor Chip

Are common on all circuit designs. These caps have low standoff gaps under 50µms. The tighter pitch in combination with the low standoff can underfill and block outgassing channels. The caps are excellent for characterizing both clean and no-clean process residues under similar component styles.

0201/10 PF-480 PF Capacitor Chip

0201/10 PF-480 PF Capacitor Chip

Is a miniaturized cap with a very tight pitch between the conductors of opposite polarity. Flux often bridges the conductive paths, but this component is good for both clean and no-clean process residues.
