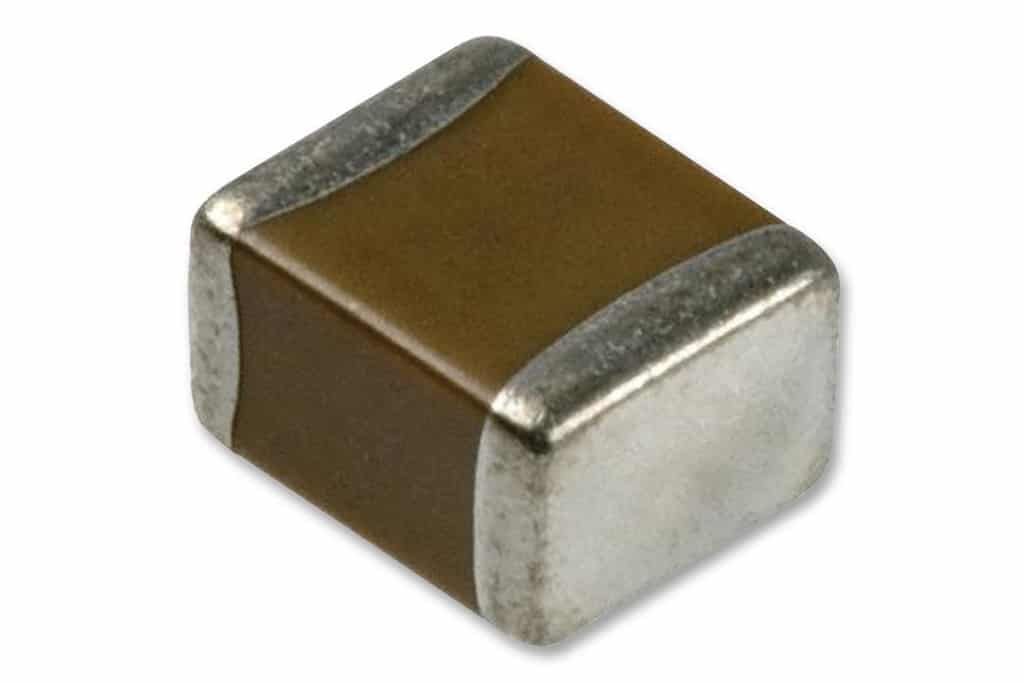

0201/10 PF-480 PF Capacitor Chip
0201/10 PF-480 PF Capacitor Chip

0201/10 PF-480 PF Capacitor Chip

Description

Is a miniaturized cap with a very tight pitch between the conductors of opposite polarity. Flux often bridges the conductive paths, but this component is good for both clean and no-clean process residues.

Details

0.024”L x 0.012”W (0.60 mm x 0.30 mm)

Compatible Test Cards
MGX B-52 Legacy 2

MGX B-52 Legacy 2

The MGX B-52 Legacy 2 SIR test board evaluates the activity of flux residue at both the I/O and under component terminations. MGX B-52 Legacy 2 is used to characterize solder paste, process development, and process control. The B-52 Legacy 2 card is one of our most popular test cards.
