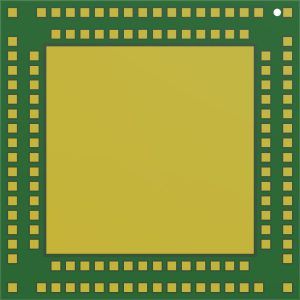

MGX QFN DR 124-1 Chip (Back View)
MGX QFN DR 124-1 Chip (Back View)

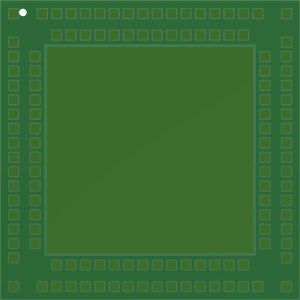

MGX QFN DR 124-1 Chip (Front View)

MGX QFN DR 124-1 Chip

Description

MGX QFN DR 124-1 Chip is a dual row QFN with 124 signal pins and large 7 mm squared ground lug designed to define cleanliness levels under similar package styles.

Details

124-Leads, Body 10.4×10.4 mm, Pitch 0.5 mm

Compatible Test Cards
MGX B-52 Legacy 4

MGX B-52 Legacy 4

The MGX B-52 Legacy 4 test board is excellent for evaluating the design margin represented on assemblies populated with bottom terminated components. The QFN designs incorporate large thermal lugs, which can underfill the bottom termination with flux residue.
