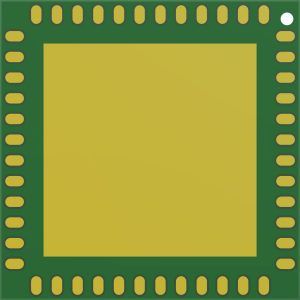

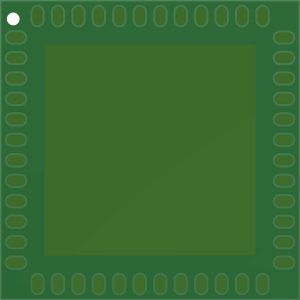

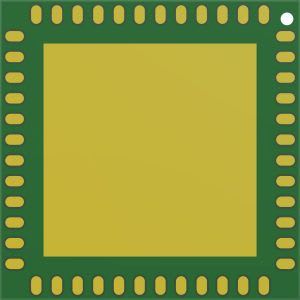

The MGX QFN 11 SIR test board reduces signal pin pitch over the four quadrants. As the signal pin distance between opposite conductors narrows, the potential for current leakage increases. The tighter pitch equates to increases in the cubic volume of flux residue.
The MGX Mixed Technology SIR Test Board is a purpose built Surface Insulation Resistance (SIR) and electrochemical reliability test platform designed to evaluate flux behavior, cleaning effectiveness, and process robustness across a range of component geometries. Combining fine-pitch, bottom-terminated, through-hole, and passive components on a single standardized board enables comprehensive cleanliness and reliability characterization aligned with J-STD-001 Section 8 requirements.
