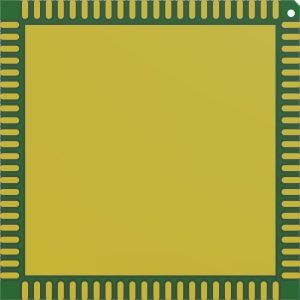

MGX QFN 88-1 Chip (Back View)
MGX QFN 88-1 Chip (Back View)

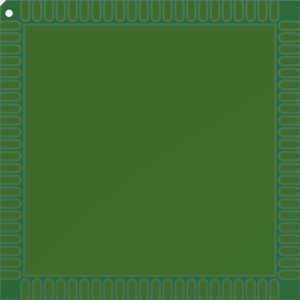

MGX QFN 88-1 Chip (Front View)

MGX QFN 88-1 Chip

Description

MGX QFN 88-1 Chip is a larger QFN with 88 signal pins and 10.5 mm squared thermal lug designed to define cleanliness levels under similar package styles.

Details

88-Leads, Body 12.6×12.6 mm, Pitch 0.5 mm

Compatible Test Cards
MGX B-52 Legacy 4

MGX B-52 Legacy 4

The MGX B-52 Legacy 4 test board is excellent for evaluating the design margin represented on assemblies populated with bottom terminated components. The QFN designs incorporate large thermal lugs, which can underfill the bottom termination with flux residue.
