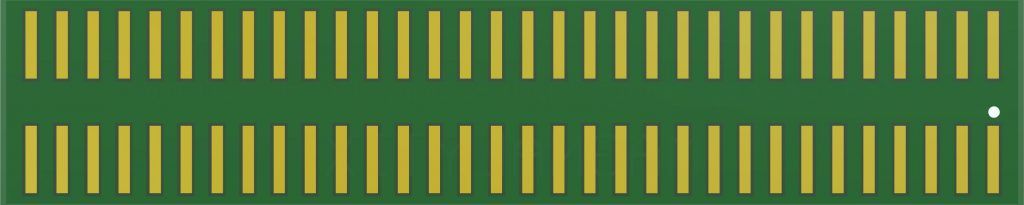

MGX Custom 64 SMT Connector (Back View)
MGX Custom 64 SMT Connector (Back View)

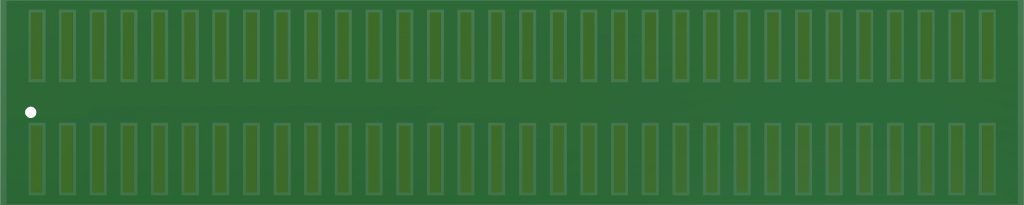

MGX Custom 64 SMT Connector (Front View)

MGX Custom 64 SMT Connector

Description

MGX Custom 64 SMT is representative of surface mount connectors. The large pad dimensions of 0.36 mm by 2.2 mm can trap process residues pin to pin. This component is designed to define cleanliness levels on similar connector designs.

Details

64-Leads, Body 33×6.6 mm, Pitch 1 mm

Compatible Test Cards
MGX B-52 Legacy 4

MGX B-52 Legacy 4

The MGX B-52 Legacy 4 test board is excellent for evaluating the design margin represented on assemblies populated with bottom terminated components. The QFN designs incorporate large thermal lugs, which can underfill the bottom termination with flux residue.
