9-8-7-6 Validation Card

Description

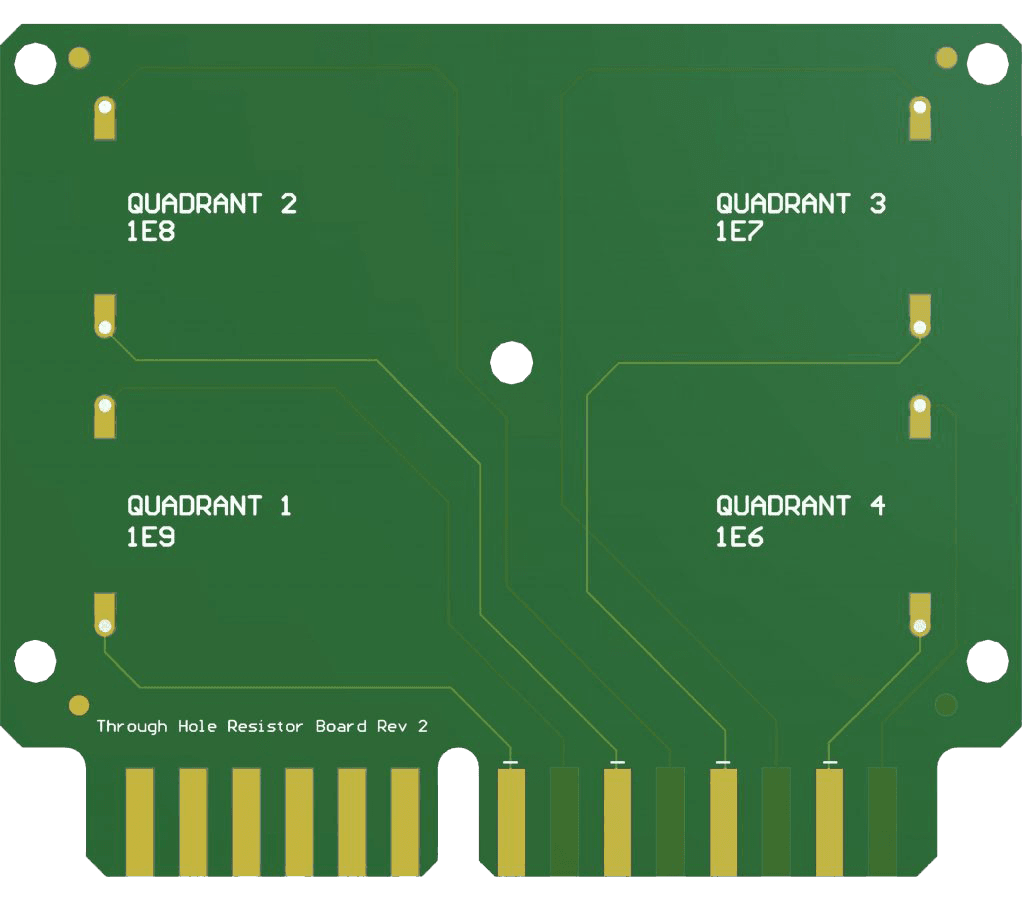

The MGX 9/8/7/6 system validation board is populated with four known value resistors. Its purpose to confirm or 'validate' that the system is reading the proper resistance values prior to commencing a new test. This card is designed to run at ambient conditions and is recommended for use prior to the beginning of an SIR test protocol. The system software includes a software checklist/protocol to quickly validate the system, as well as record and report the results along with SIR test that commences after the validation test. Some clients elect to run the test both before and after a SIR protocol.

Uses

SIR Instrument Calibration

Edge Connector Validation

Cable Connection Validation
