MGX 20 Pin Header

Description

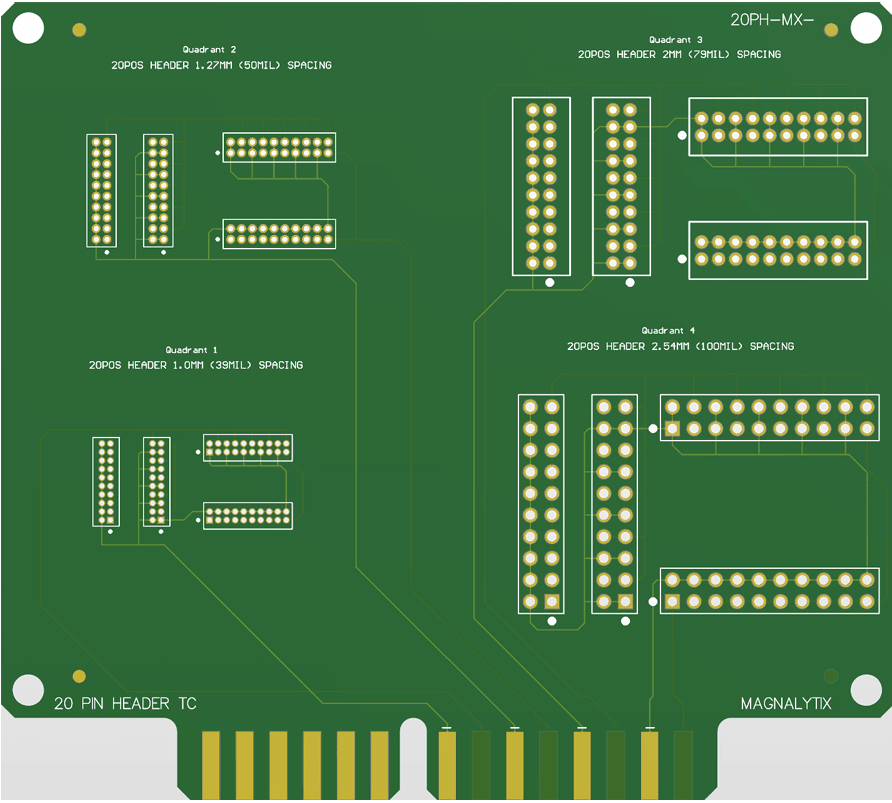

The MGX 20 Pin Header test board is designed to test both wave solder and selective solder processes. Each quadrant has a change in pitch from 1 mm/1.27 mm/2 mm/2.54 mm. The reduction in pitch allows the assembler to dial in their selective soldering and wave soldering processes on highly dense component geometries. This board is also capable of doing paste in-hole.
