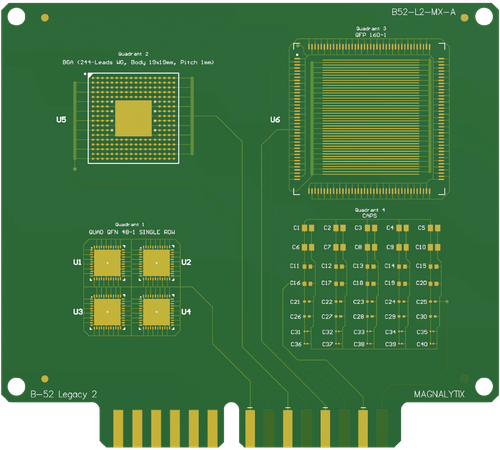

Today, we’re shining the spotlight on one of our flagship products—the B-52 Legacy 2 SMT Test Board. This versatile board plays a pivotal role in the electronics manufacturing process, helping you to characterize solder pastes, evaluate process parameters, and ensure the overall reliability of your electronic assemblies. In this post, we’ll dive into the specific applications of the B-52 Legacy 2 and how it can be an indispensable tool in your process development and control efforts.
Solder Paste Characterization
One of the primary uses of the B-52 Legacy 2 board is in the characterization of solder pastes. As the demands of electronics manufacturing continue to evolve, ensuring that your solder paste performs reliably under a variety of conditions is critical.
- Activity of Solder Paste Residue: The board is designed to help you assess the activity of solder paste residue, which is crucial in determining its potential impact on long-term reliability. In the presence of moisture and humidity, active flux residues can mobilize metal oxides, leading to current leakage and potential failures. The B-52 Legacy 2 allows you to simulate these conditions and evaluate how your solder paste behaves over time, giving you valuable insights into its suitability for your specific application.
- No-Clean and Cleaning Applications: Whether you’re working with no-clean or clean soldering processes, the B-52 Legacy 2 is equipped to help you characterize solder pastes for both scenarios. This versatility makes it an ideal tool for manufacturers who need to validate solder paste performance across different production environments.
Process Development
Beyond solder paste characterization, the B-52 Legacy 2 board is also a powerful tool for process development.
- Reflow Conditions and Flux Outgassing: Understanding the reflow profile and flux outgassing behavior is essential for optimizing your soldering process. The B-52 Legacy 2 allows you to evaluate how different reflow conditions affect flux outgassing, particularly under leadless and bottom-terminated components. This data is critical for refining your process and ensuring that it meets the necessary quality and reliability standards.
- Cleaning Agent and Machine Effectiveness: In addition to solder paste characterization, the B-52 Legacy 2 can be used to test the effectiveness of cleaning agents and machines. It helps you validate that your cleaning process is removing all residues effectively, even under and around component terminations. This is especially important for high-reliability applications where any remaining residues could lead to failure over time.
Process Control
Once your process is developed, maintaining control over it is key to ensuring consistent results. The regular testing of the B-52 Legacy 2 board provides a reliable means of monitoring and controlling various aspects of your production process.
The Most Popular Test Board
The B-52 Legacy 2 is our most ordered test board, and for good reason. Its versatility in component selection makes it an ideal choice for a wide range of applications, from solder paste characterization to process control. Whether you're working with standard SMT components or more complex assemblies, this board provides the flexibility you need to thoroughly evaluate and optimize your manufacturing process.
Conclusion
The B-52 Legacy 2 SMT Test Board is more than just a test board—it’s a comprehensive tool for ensuring the reliability and quality of your electronic assemblies. From solder paste characterization to process development and control, this board offers the versatility and precision you need to optimize your production process.
At Magnalytix, we’re committed to helping you navigate the complexities of modern electronics manufacturing. Our extensive experience and advanced testing capabilities provide you with the insights you need to make informed decisions and ensure that your assemblies perform as expected.
For more information on how the B-52 Legacy 2 board can benefit your process, contact us. Together, we can build reliable electronics that stand the test of time.
